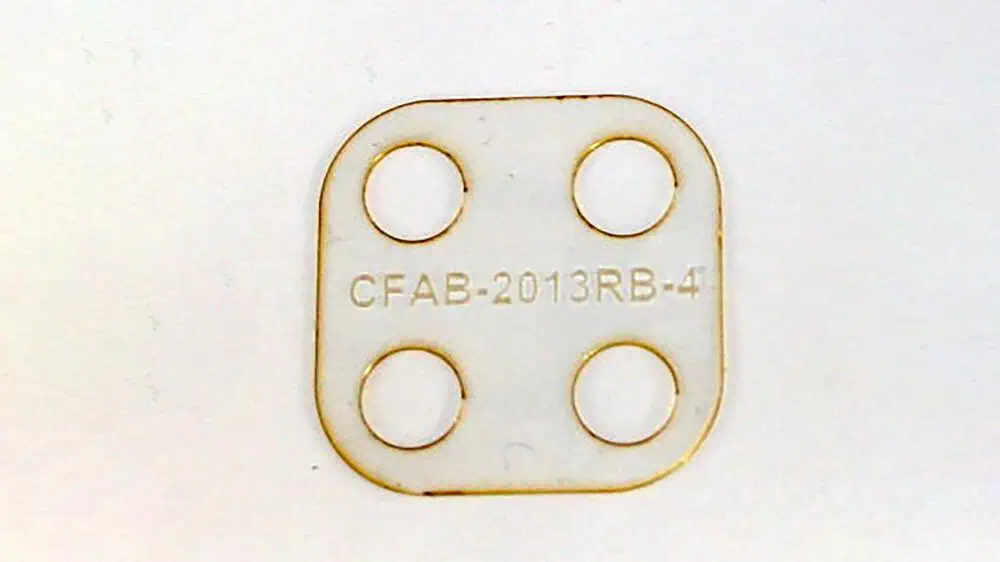

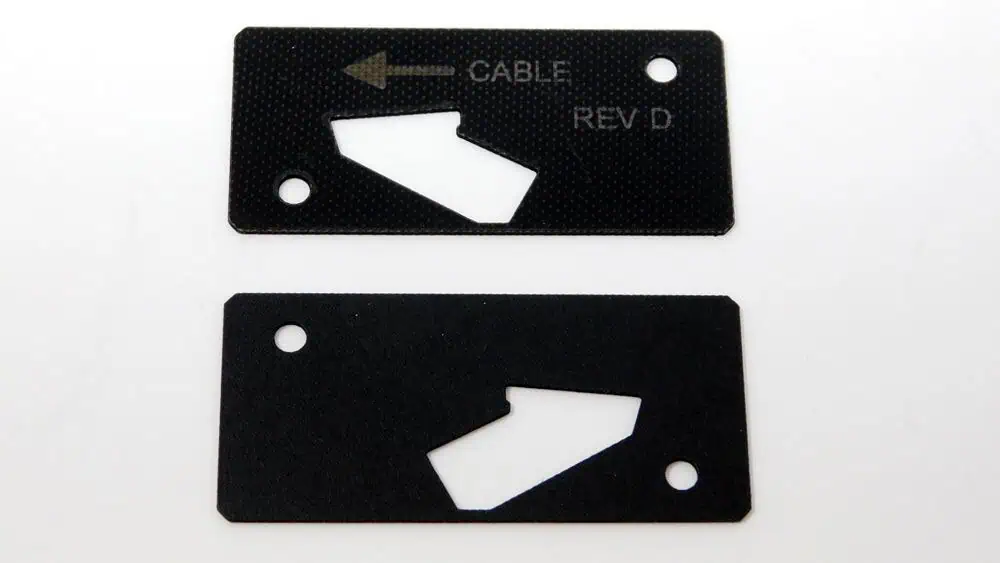

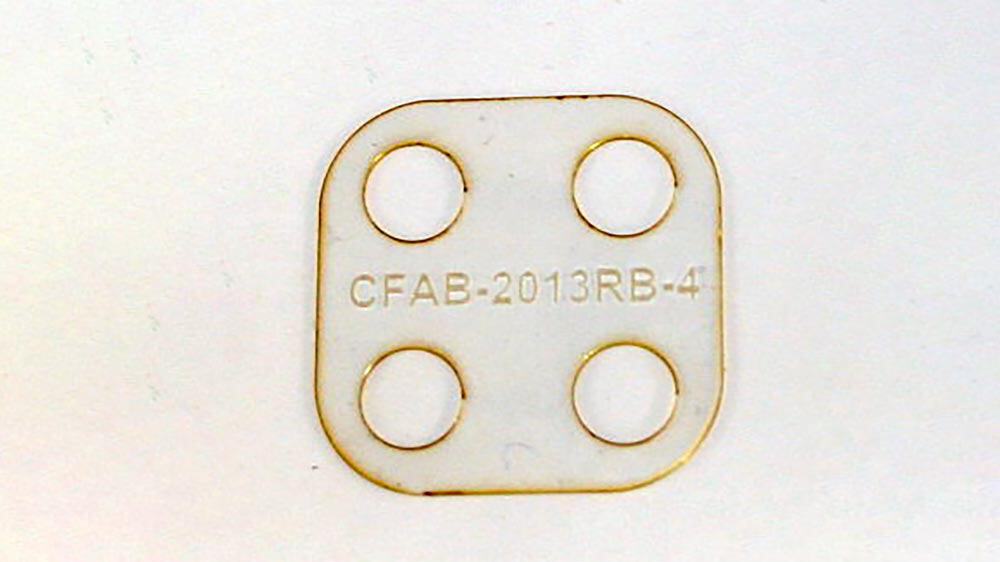

Our precision CO2 laser cutting systems are used primarily for cutting non-metallic materials, but we can also cut thin gage aluminum and steel, and we can raster images on our laser-cut parts. We also use our lasers for precision spray mask trimming.
Our CO2 lasers are designed and built for holding tolerances of ± .005”, and we utilize programmable vision CMM’s to ensure tolerances are held.

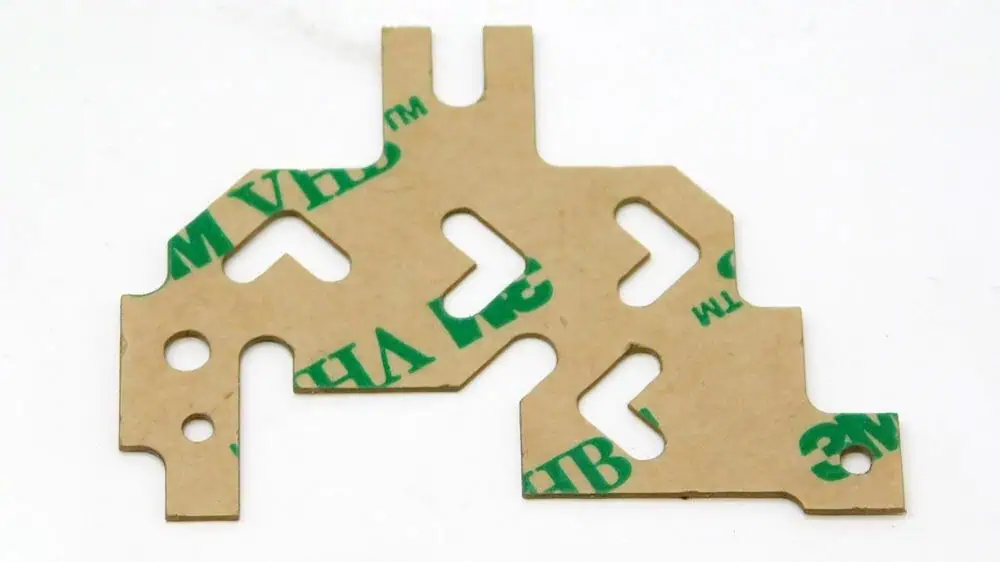

Our CO2 laser work center includes a laminator, so we can laminate pressure sensitive adhesive (PSA) sheets to plastic sheets prior to laser cutting.
The table below lists some of the materials that we have cut. The thickness can be up to 1” for materials that cut cleanly on a CO2 laser, such as acetal and acrylic, or down to .030” for materials that tend to burn, such as FR-4/G-10 and polycarbonate.
Laser Cutting Materials |
|
---|---|
3M 3635-100 | FR-4/G-10 black |
3M 3650-10 | FR-4/G-10 natural |
3M 467MP | Homalite H101 |
3M 468MP | Lexan 8010 |
3M 7026 | Lexan 8A13F |
3M 7903FL | Lexan 8A35 |
3M 7945MP | Lexan 8B35 |
3M 7952MP | Lexan 9034 |
3M 8805 | Lexan FR60 |
3M 9690B | Lexan FR700 |
3M BEF3-T-155M | Mylar (PET) film |
3M F9460PC | Neoprene Rubber |
3M F9469PC | Polyken 332 Aluminum Foil |
Acrylic per ASTM D4802 | Rogers PORON 4701 |
Acrylic per L-P-391 | Rubber per MIL-R-6855 |
Acrylic per MIL-PRF-5425 | Teflon (PTFE) film |
Delrin 150 (acetal) | WL Gore Diffuse Reflector (DRP) |
